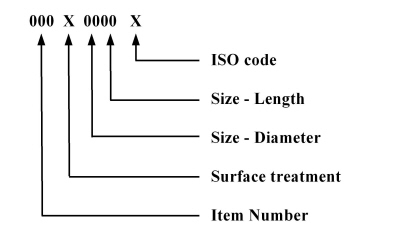

ISO code |
? |
|
|
|
|
|
|
|
|
Size - Length |
08 =
8 mm, 10 = 10 mm. 15 = 15 mm etc.. |
|
|
|
|
|
|
Size - Diameter |
08 =
8 mm, 10 = 10 mm. 15 = 15 mm etc.. |
|
|
|
|
|
|
Surface treatment |
A |
= |
Polished but not finished? |
|
|
B |
= |
Bright Zinc ? |
|
|
E |
= |
Chrome ? |
|
|
F |
= |
Zinc Plated - dull? |
|
|
G |
= |
Unfinished ? |
|
|
K |
= |
Black oxide? |
|
|
N |
= |
Chrome ? |
|
|
|
|
|
|
Item Number |
110 |
= |
Hex Bolts - standard thread JIS |
|
|
113 |
= |
Hex Bolts -
Fine thread |
|
|
172 |
= |
Stud |
|
|
|
|
|
|
|
212 |
= |
Countersunk head flat screws |
|
|
220 |
= |
Pan
head, Cross point - standard thread JIS B1111 |
|
|
221 |
= |
Countersunk head Cross point screws |
|
|
222 |
= |
"Oval" Countersunk head Cross point
screws |
|
|
|
|
|
|
|
310 |
= |
Nuts
standard thread JIS B1181 |
|
|
311 |
= |
Nuts |
|
|
312 |
= |
Nuts |
|
|
313 |
= |
Nuts, Fine Thread |
|
|
316 |
= |
Nuts |
|
|
|
|
|
|
|
410 |
= |
Flat washers |
|
|
411 |
= |
Flat washers |
|
|
460 |
= |
Spring washers (Lock washers) |
|
|
461 |
= |
Spring washers (Lock washers) |
|
|
463 |
= |
Lock washers - Inside star |
|
|
464 |
= |
Lock washers - Outside star |
|
|
|
|
|
|
|
482 |
= |
Circlip - inside |
|
|
|
|
|
|
|
550 |
= |
Cotter Pin |
|
|
552 |
= |
Dowel Pins |
|
|
|
|
|
|
|
601 |
= |
Ball bearings....NOTE:
Bearings use the "trade number" instead of the size measurements |
|
|
670 |
= |
O rings |
